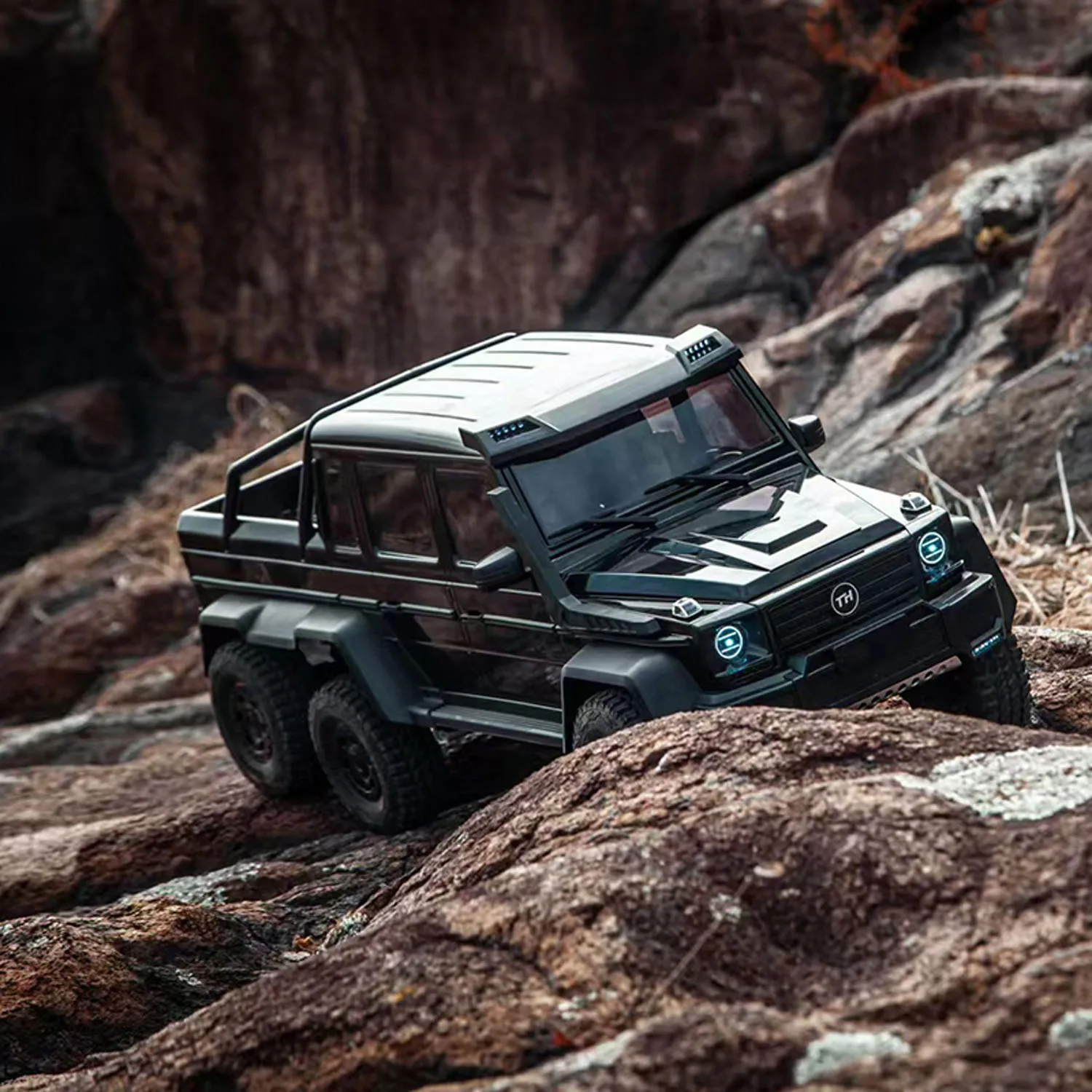

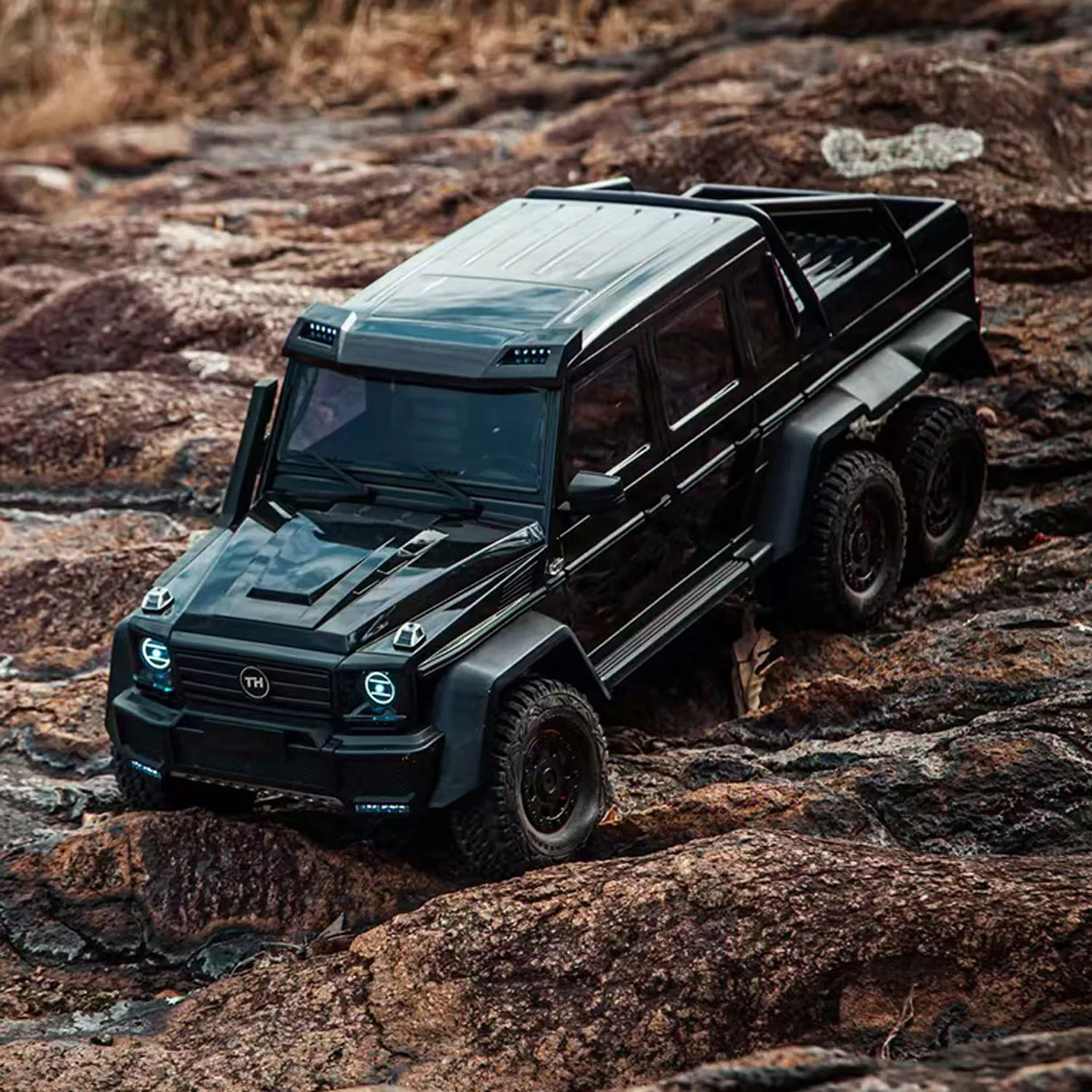

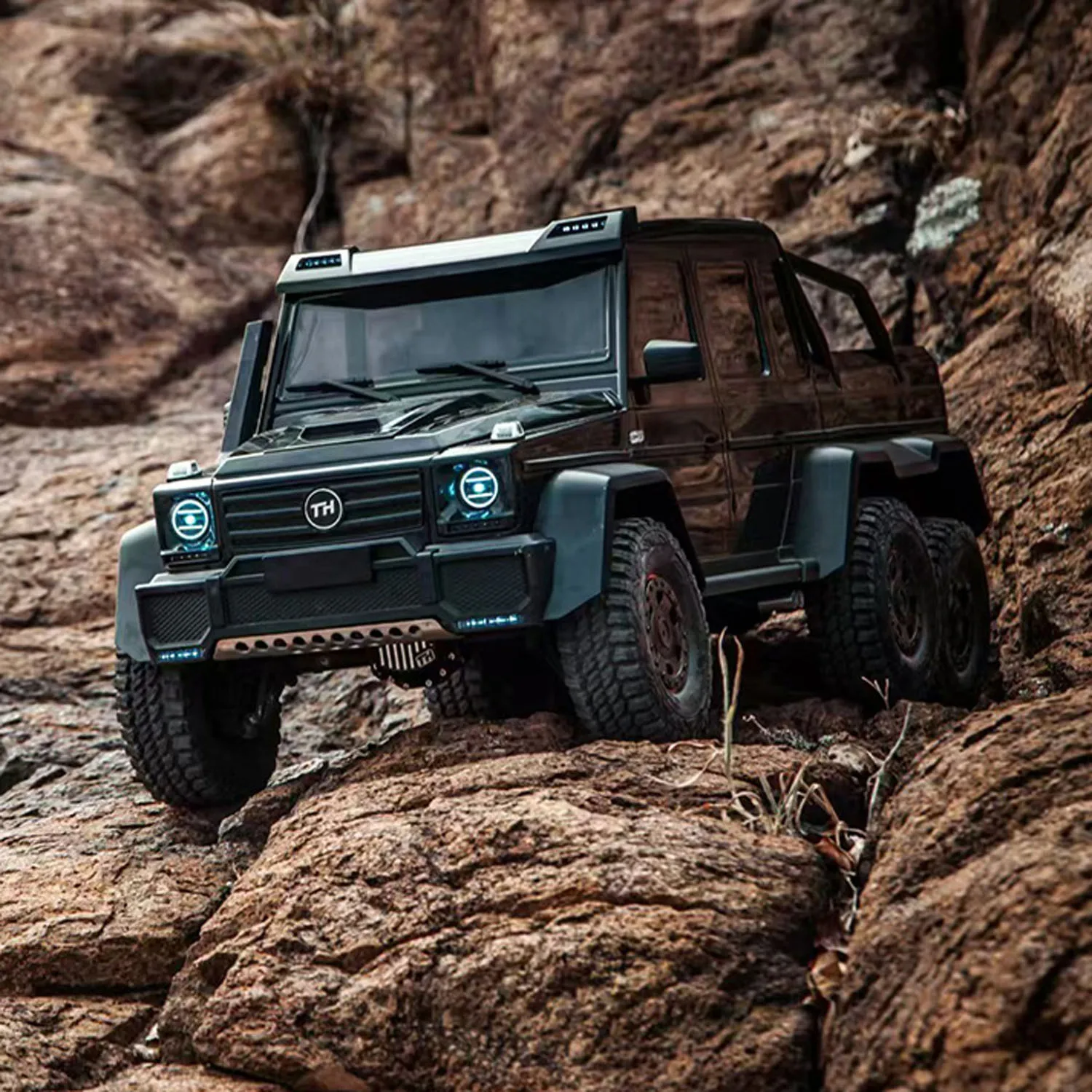

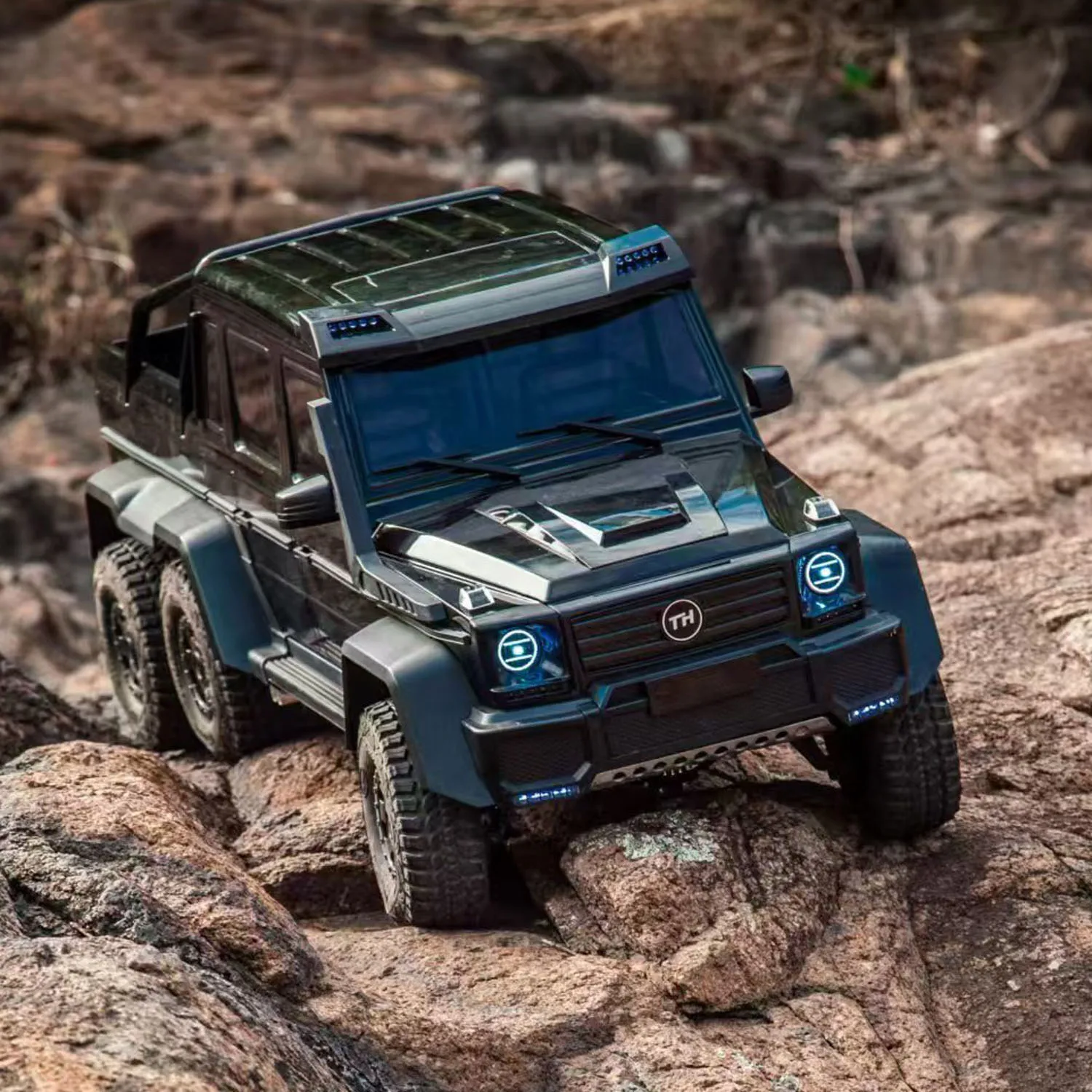

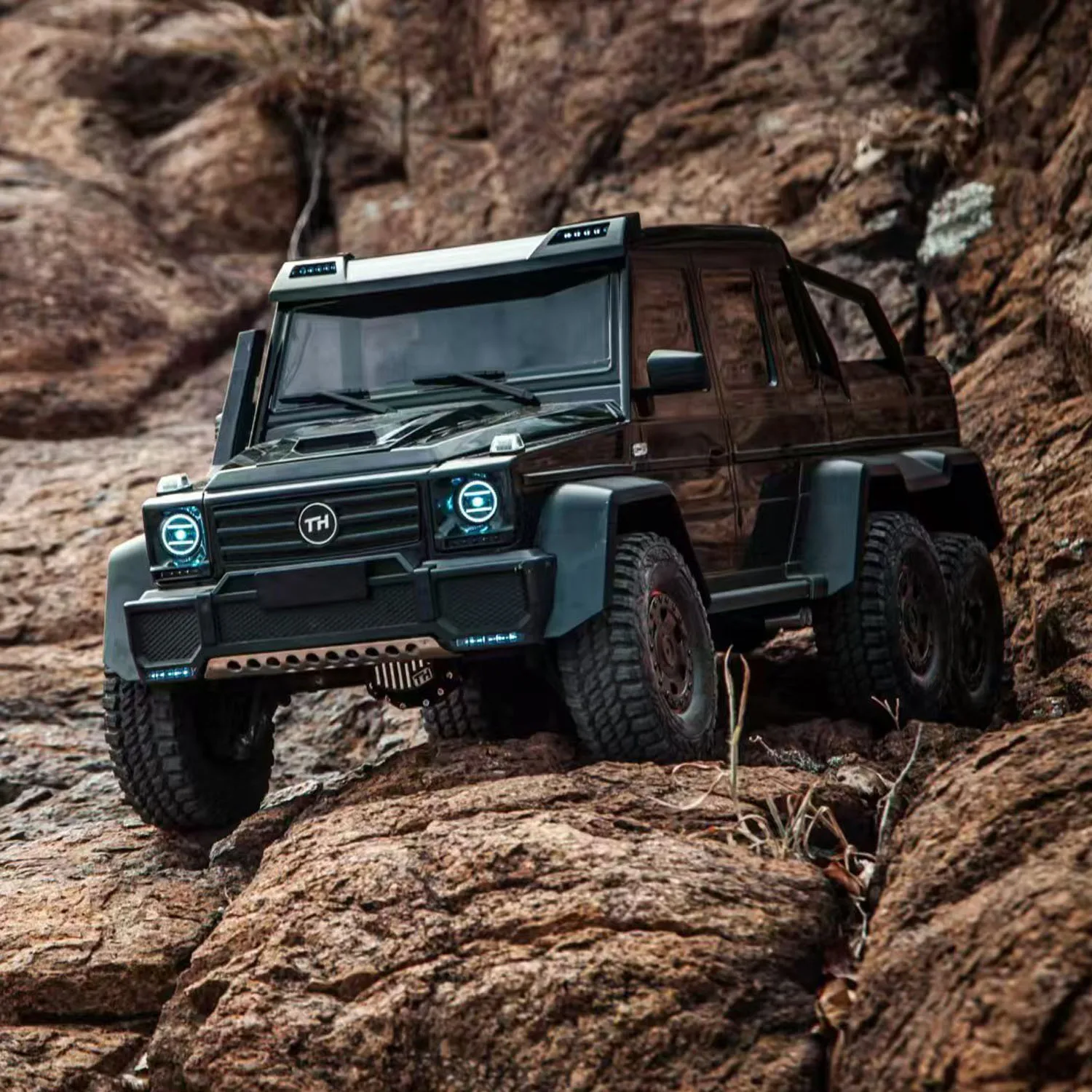

Traction Hobby BG630 1/8 6x6 RC Rock Crawler RTR G63 Off-Road 8.5kg Hobby Adults Metal Aluminum Hobbyist Portal
Traction Hobby BG630 1/8 6x6 RC Rock Crawler RTR G63 Off-Road 8.5kg Hobby Adults Metal Aluminum Hobbyist Portal Basic Info (RTR Version) Brand: Traction Hobby (TH) Model: BG630 Scale: 1/8 Type:...
Basic Info (RTR Version)
Brand: Traction Hobby (TH)
Model: BG630
Scale: 1/8
Type: 6x6 RC Rock Crawler

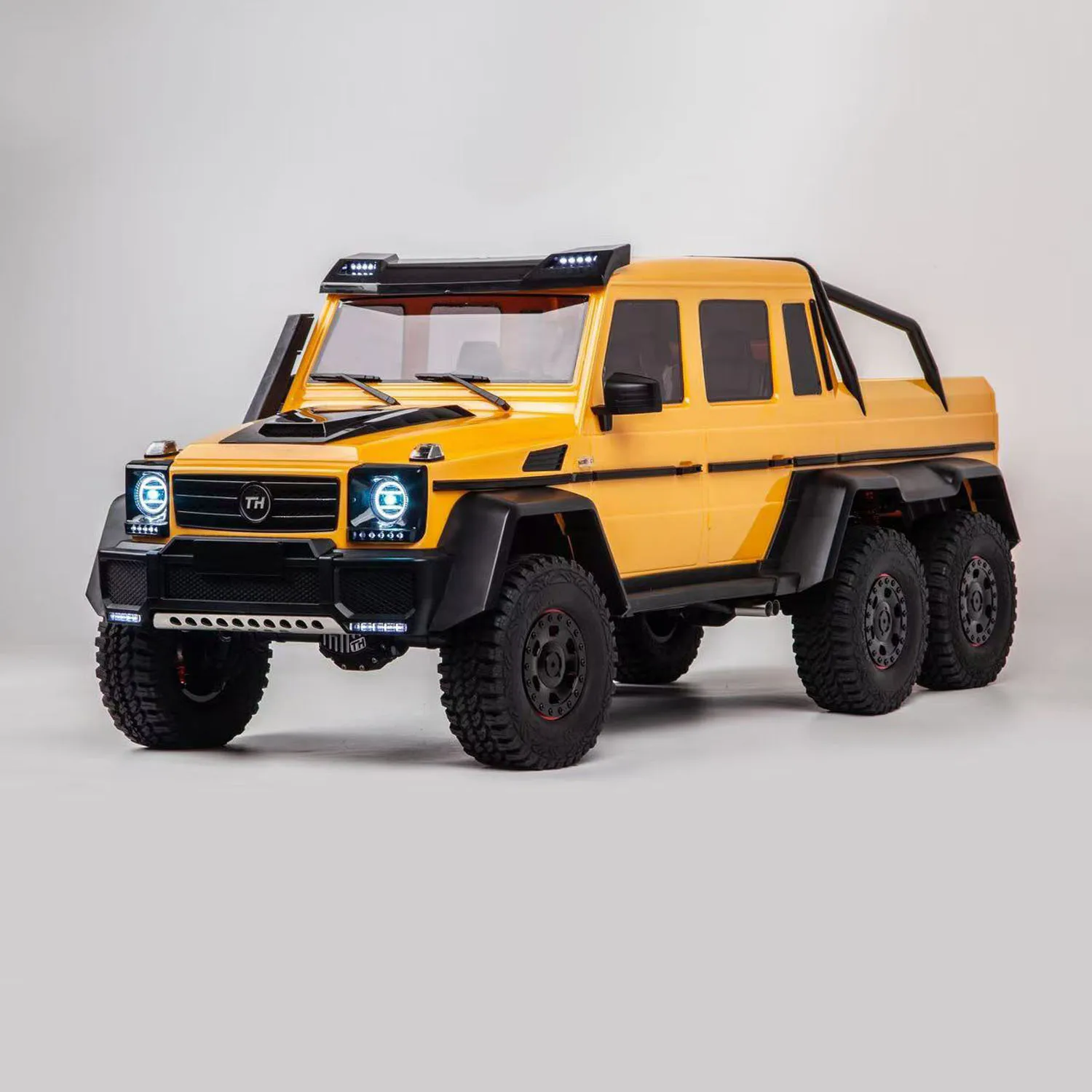

Color: Black / Silver / Gray / Desert Yellow
Battery Size: Max 150 × 56 × 40 mm
Body Dimensions (Packaging): 772 × 280 × 300 mm (930 × 320 × 340 mm)
Wheelbase: 400 mm + 140 mm
Track Width: 237.5 mm
Min Ground Clearance: 50 mm
Approach Angle: 47.5°
Breakover Angle: 43°
Departure Angle: 43.5°
Net Weight: 8.5 kg
Gross Weight: 11.2 kg
Volumetric Weight: 22 kg
Drivetrain
Axles: Front / mid / rear portal axles, center through axle
Motor Pinion: 12–20T adjustable, factory 14T
Transmission: 2-speed gearbox (front / mid / rear disconnect)
Driveshaft: Full metal, 7mm steel driveshafts
Steering: Multi-link pull-rod steering, 23KG high-voltage servo, 25T metal servo horn

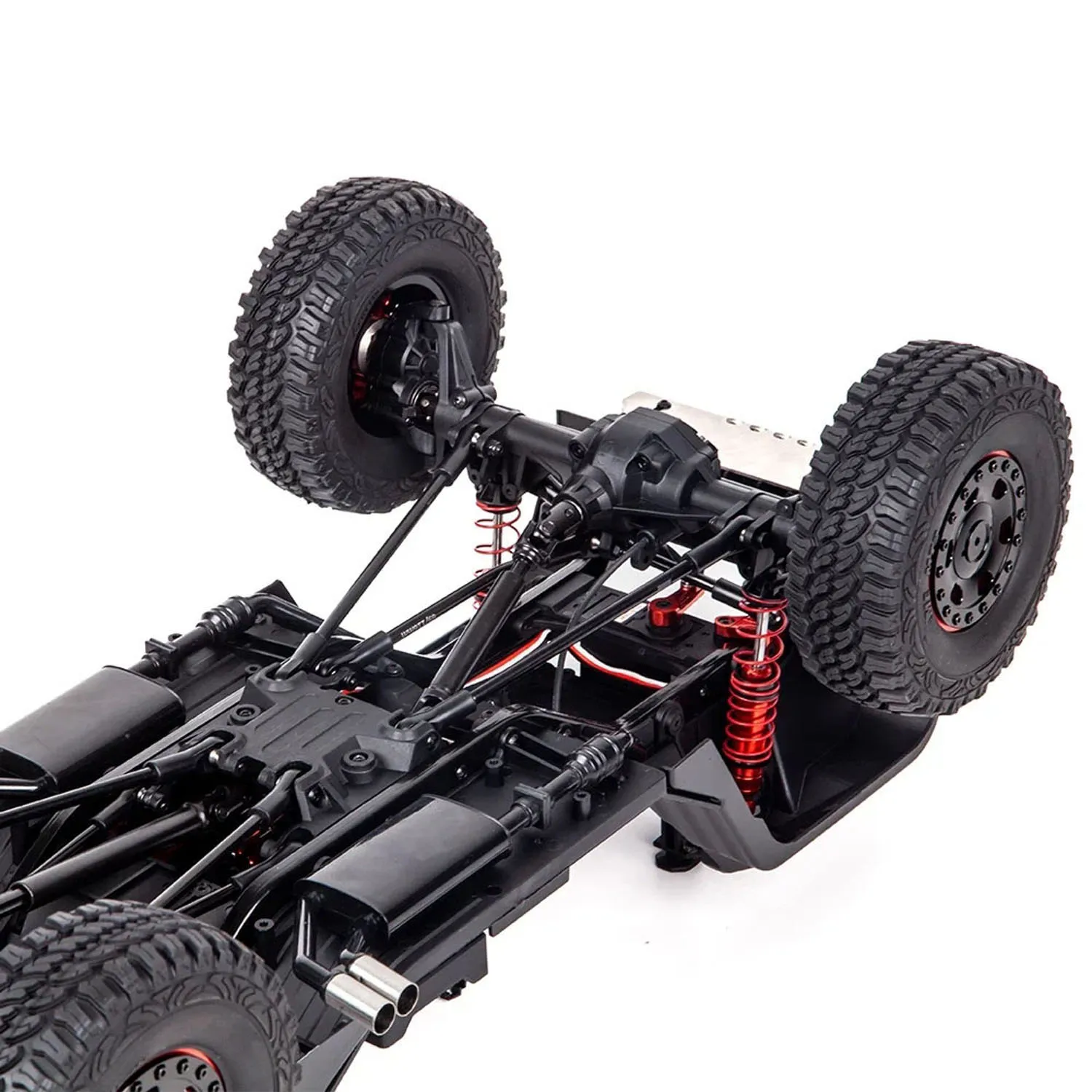

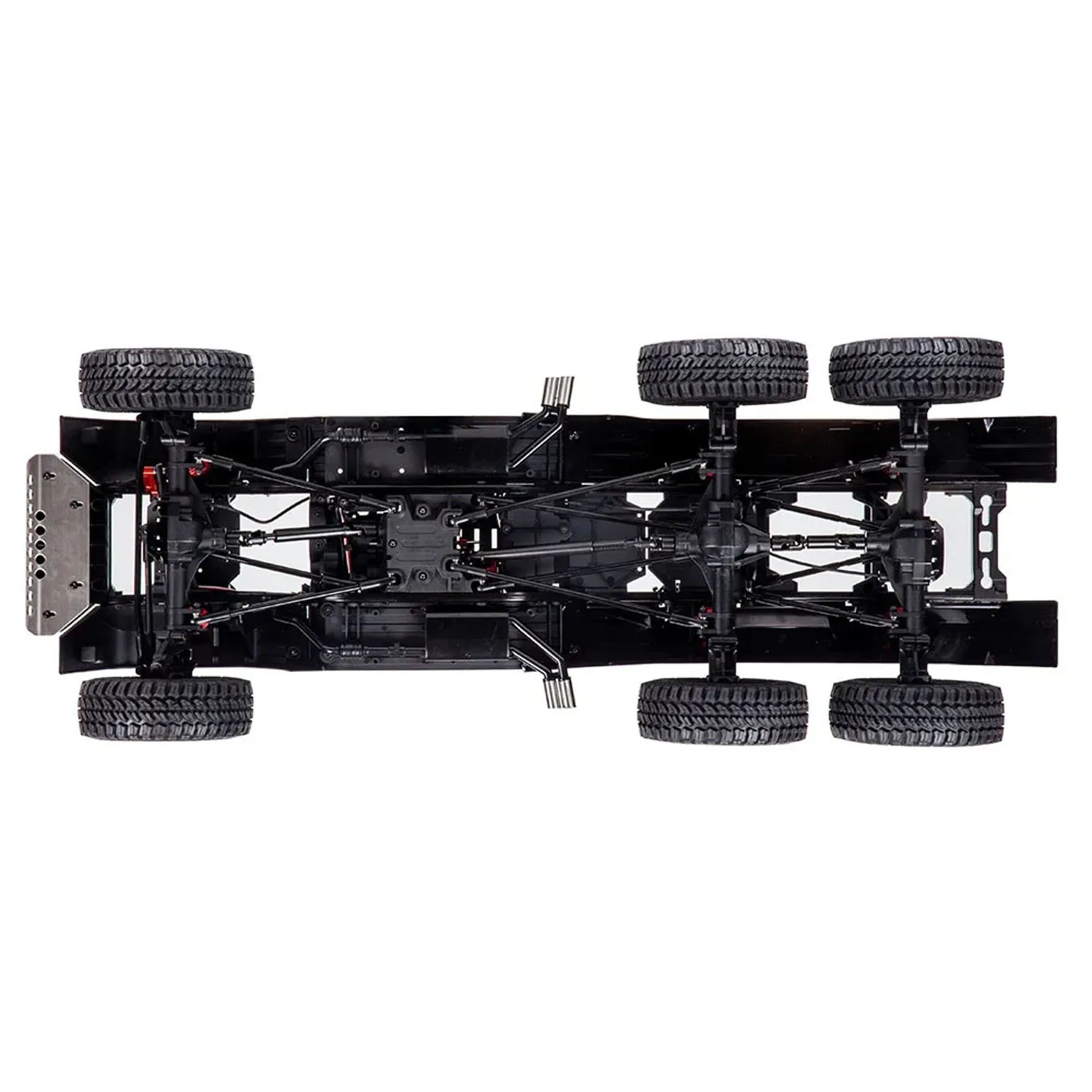

Chassis & Suspension
Frame: 1.5mm steel frame rails
Fender: 1.5mm PC

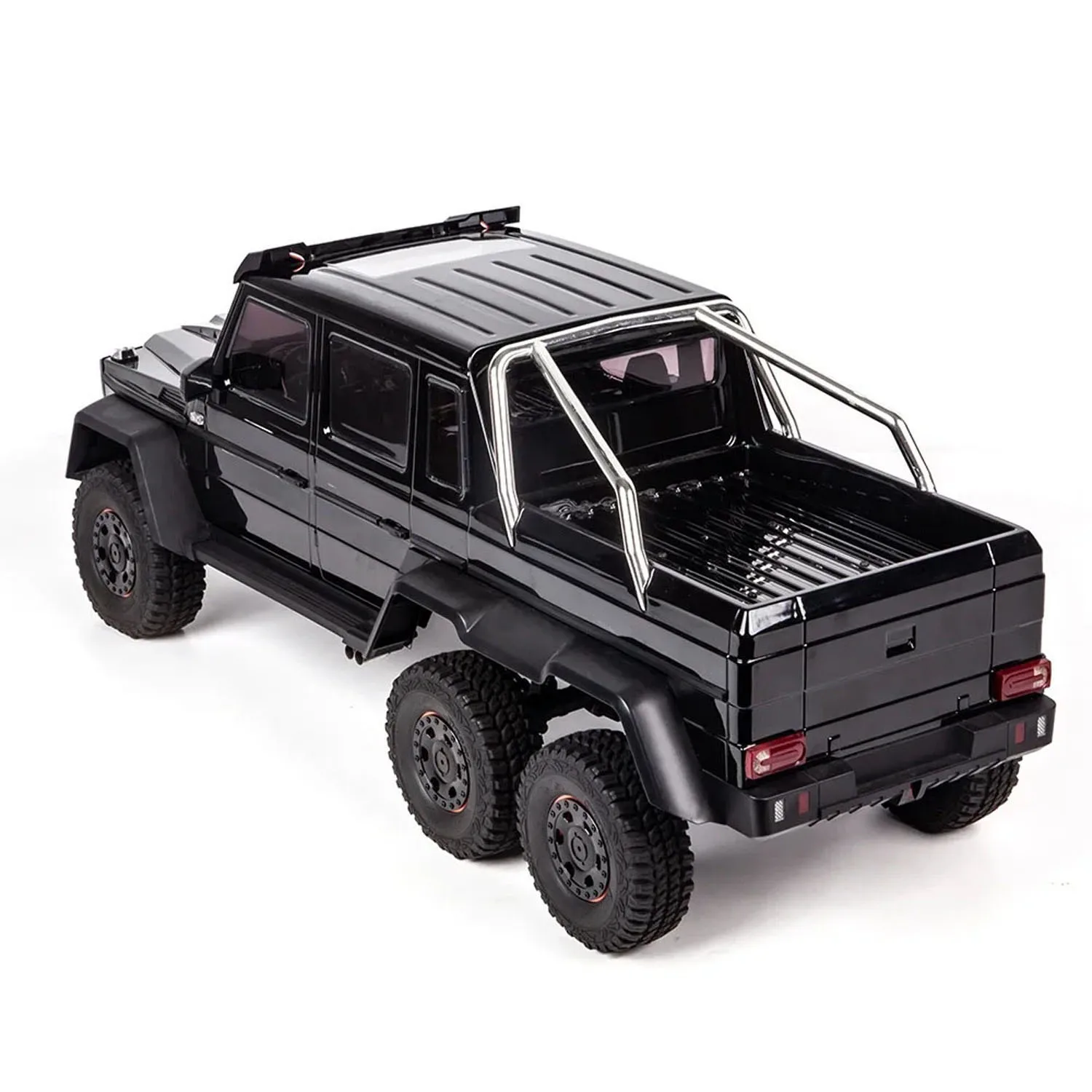

Body: 1.5mm PC, low-sunk rear bed
Shocks: Multi-hole shock mount, 102mm large-bore shocks
Reinforced Parts: Full 7mm stainless steel ball ends, 5mm metal links, metal gears, reinforced front/rear driveshafts, 3 steel driveshafts
Wheels & Tires
Wheels: 2.2" metal scale wheels
Tires: 4.7 × 1.6R2.2 (120mm dia × 41mm width)
Body Details
Front/rear bumpers, wheel arches, intake grille
Door anti-collision, foot pegs, sun visors
Rearview mirrors, front/rear wipers, door handles
Body trim, snorkel
Electronics (RTR)
Radio: Flysky DDF 10-channel color screen
Motor: Mabuchi motor
ESC: Hobbywing 880 (BBC 7.4V) custom high-voltage waterproof
Steering Servo: TH1623HV metal gear 14T ×1 with metal horn
Winch Servo: TH1036HV high-voltage digital ×5
LED: Custom LED light system
Features
1/8 scale 6x6 rock crawler
Portal axles for high ground clearance
2-speed transmission with disconnect
Full metal drivetrain
10-channel radio with color screen
Waterproof electronics
LED light system
RTR, ready to drive
