New LESU RC Hydraulic Excavator 1/14 Metal Remote Controlled Digger LR945 Model Light System Kits Unpainted Toy TH22635

$2,423.91

  For the Expert Modeler: The Pinnacle of DIY RC Engineering. Build a 90% Metal, Hydraulic-Powered Masterpiece. The LESU LR945 is not just a kit; it's the ultimate engineering challenge. Designed...

amazon paymentsamerican expressapple paygoogle paymasterpaypalshopify paysofortvisa
Description



For the Expert Modeler: The Pinnacle of DIY RC Engineering. Build a 90% Metal, Hydraulic-Powered Masterpiece.

The LESU LR945 is not just a kit; it's the ultimate engineering challenge. Designed for the master builder, this 1/14 scale, unassembled kit boasts a staggering 90% metal construction and an 80% brazed copper hydraulic circuit. With a parts weight of 18.2kg, it demands precision assembly but rewards you with a museum-grade, fully functional hydraulic excavator boasting professional-grade performance metrics. This is the definitive project for those who seek to understand and command every mechanical and hydraulic detail.


📦 Kit Contents: A Comprehensive Build Project

This kit requires full assembly, painting, wiring, and hydraulic system commissioning. Expertise is mandatory.

✅ INCLUDED (In Kit Form):

  • All Structural Components: Metal chassis, track links, CNC-machined aluminum alloy boom & counterweight, cabin, etc.

  • Core Drive & Hydraulics: Motors, Servos, ESC, Hydraulic Pump, 7-Channel Control Valves.

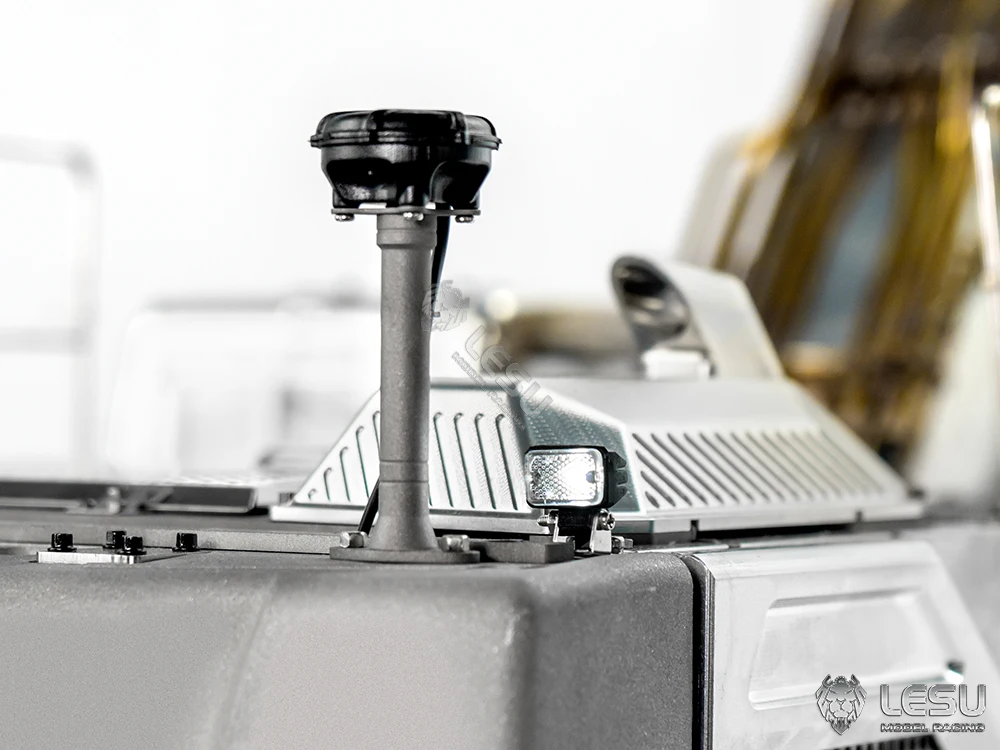

  • Full Lighting System: LED components and wiring harness.

  • Hydraulic Infrastructure: Pre-fabricated brazed copper tubing network, stainless steel cylinders, fittings.

  • Detailed assembly guides and all necessary hardware.

❌ NOT INCLUDED (Builder Must Source):

  • Radio Control System: Transmitter & Receiver (7+ channels recommended).

  • Power System: Battery & Compatible Charger.

  • Sound Effect Module.

  • Hydraulic Fluid (ISO VG 46 or equivalent).

  • Paint, Adhesives, Tools, and workshop consumables.

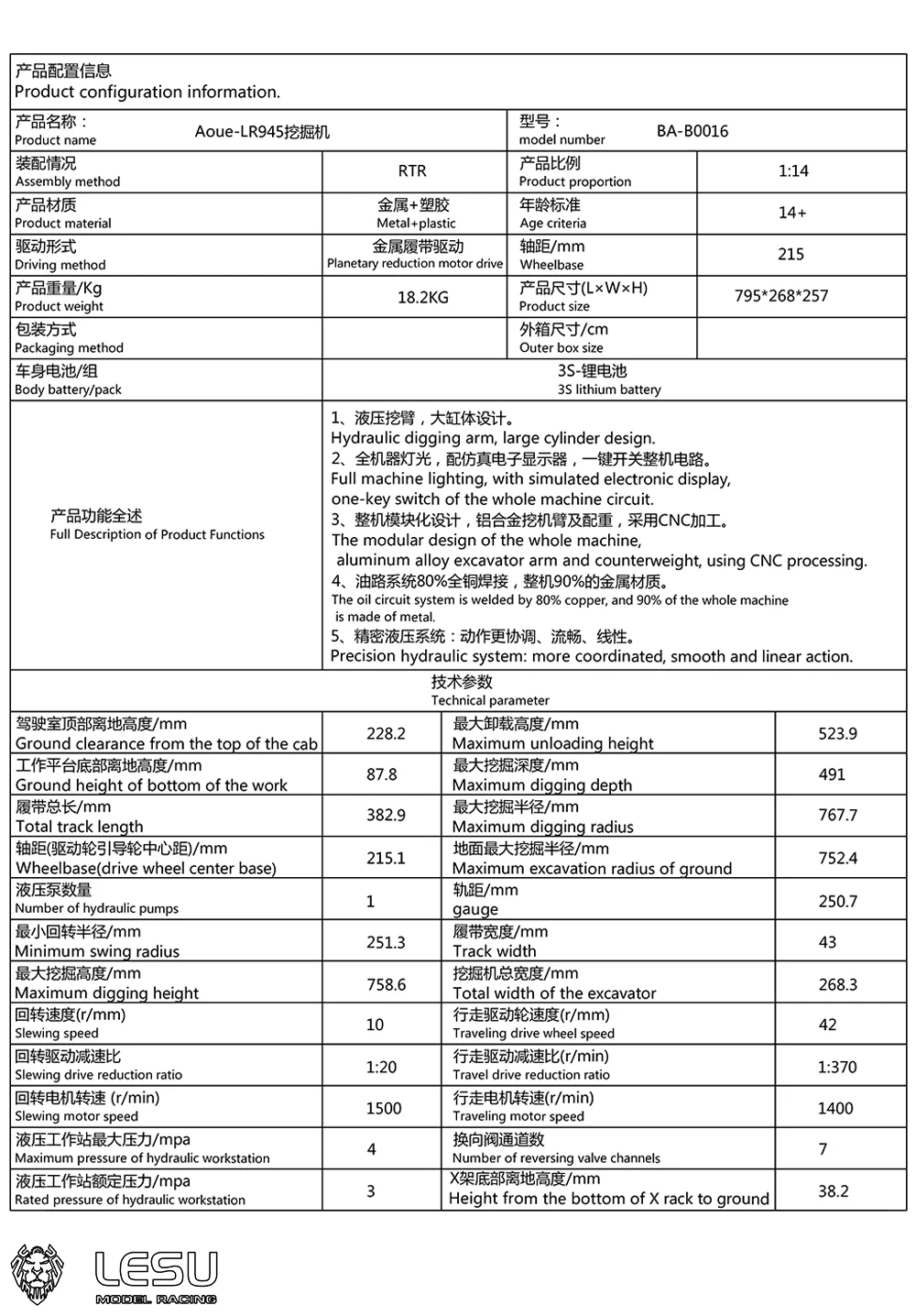

⚙️ Professional Performance Specifications



Category Specification
Model LESU LR945
Condition New, Unpainted, Unassembled Kit
Scale 1:14

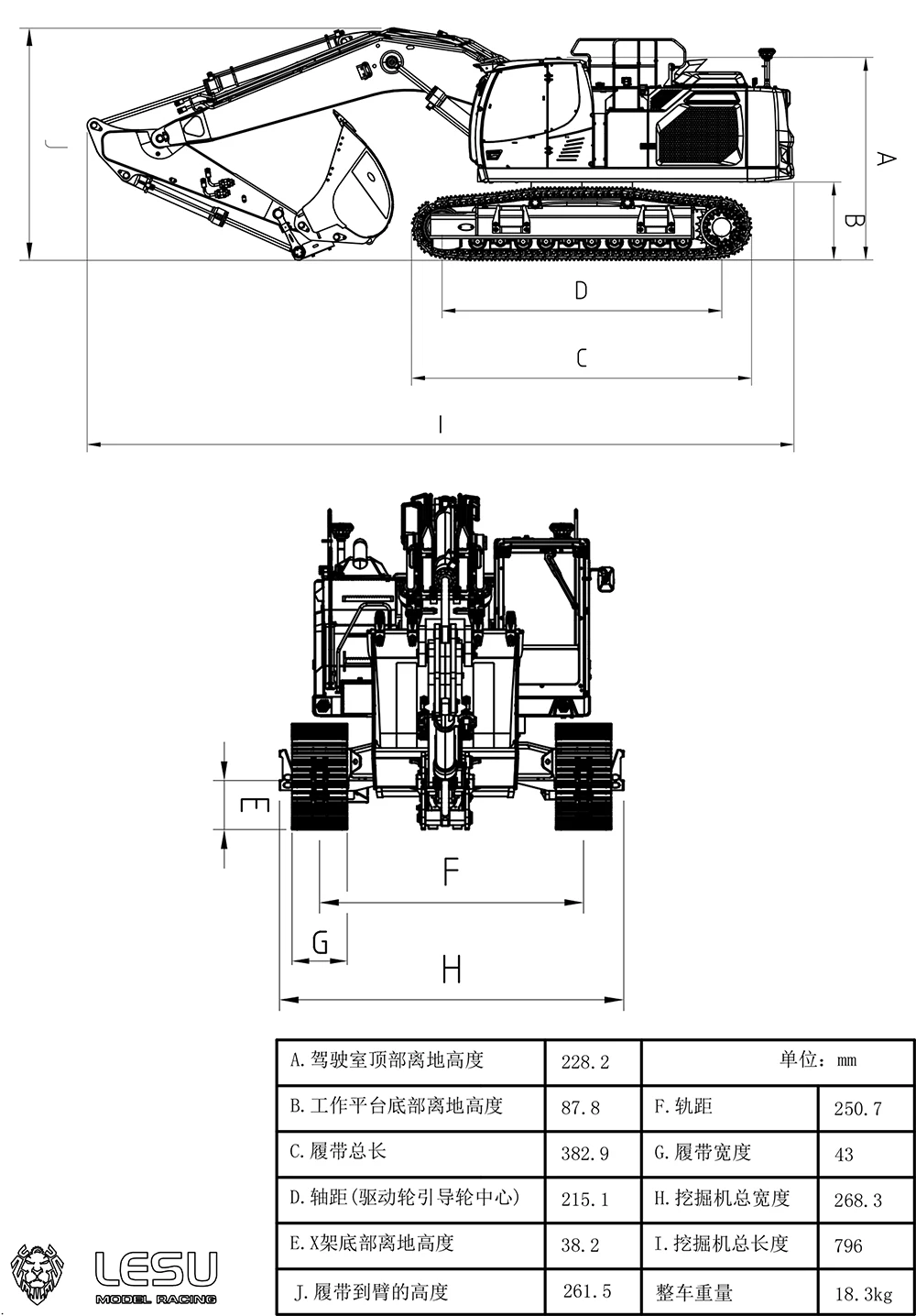

Dimensions (LxWxH) 795 x 268 x 257 mm
Parts Weight 18.2 kg

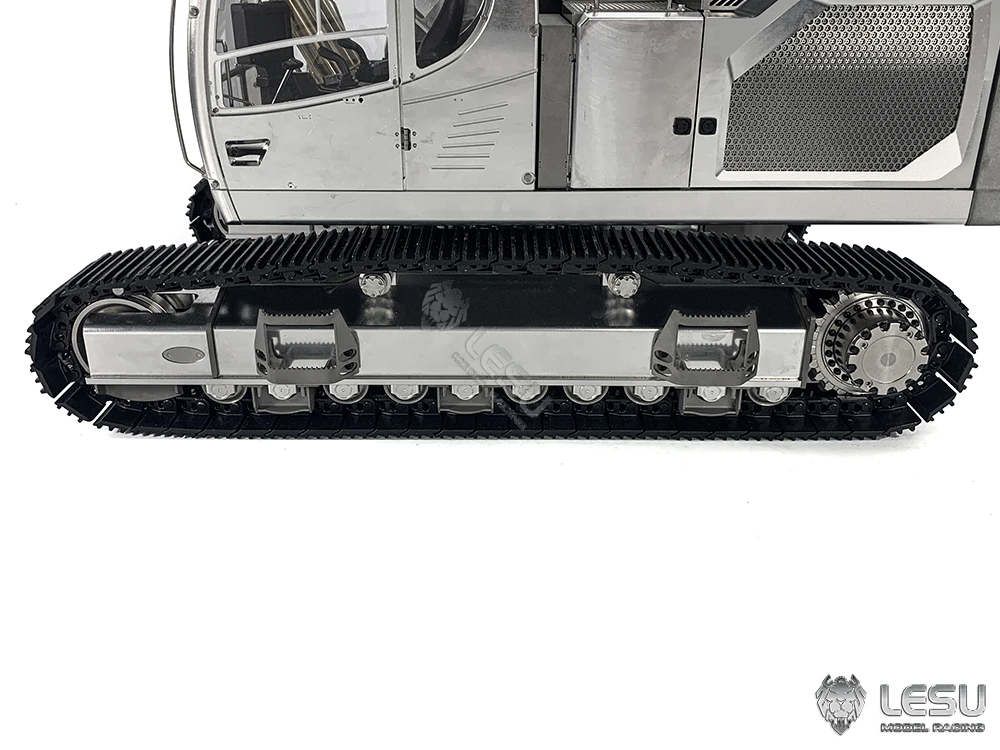

Undercarriage Track Gauge: 250.7 mm Track Width: 43 mm
Ground Clearance: 38.2 mm
Track Length: 382.9 mm
Swing System Speed: ~10 RPM Gear Reduction: 1:20
Motor Speed: 1500 RPM
Min. Turn Radius: 251.3 mm
Drive System Motor Speed: 1400 RPM Gear Reduction: 1:370
Hydraulic System Max Pressure: 4 MPa Operating Pressure: 3 MPa
Control Valves: 7 Independent Channels

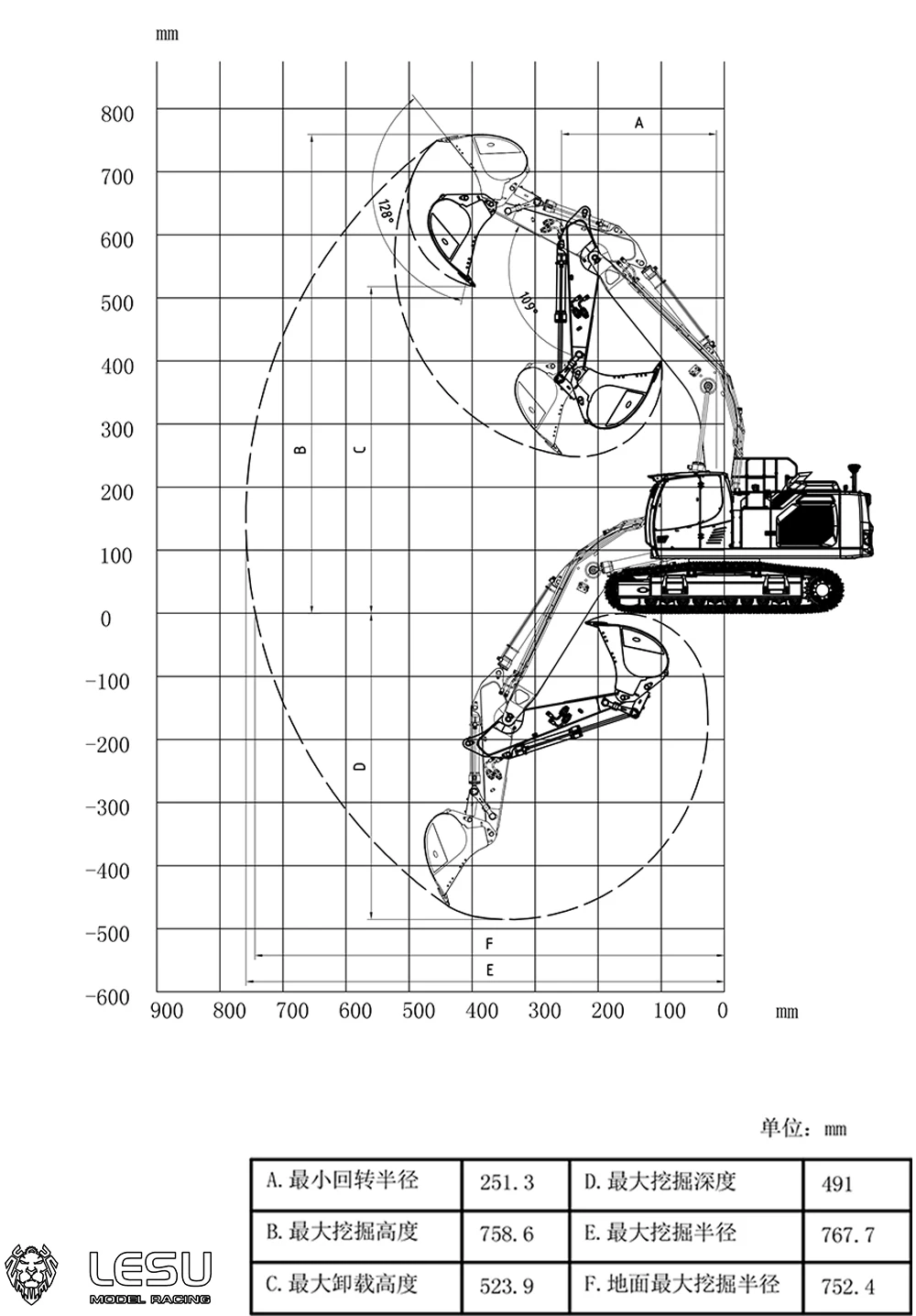

Performance Metrics Max Digging Depth: 491 mm Max Reach at Ground: 767.7 mm
Max Digging Height: 758.6 mm
Max Dump Height: 523.9 mm

🔧 Engineering & Design Philosophy

  1. Industrial-Grade Material Integrity: With 90% metal content and a brazed copper hydraulic system, this kit delivers unmatched durability, thermal efficiency, and an authentic, heavy-duty tactile feel that plastic models cannot match.

  2. Professional Hydraulic Powerhouse: The large-bore cylinder design on the boom and arm provides exceptional digging force and precise, proportional control, managed by a robust array of 7 independent hydraulic valves.

  3. Precision Modular Architecture: Key stress components like the aluminum boom and counterweight are precision CNC-machined. This modular approach not only ensures perfect fit and strength but also facilitates future maintenance, repairs, and customization.

  4. Advanced Realism & Integrated Control: The kit includes a complete realistic LED lighting system and an electronic control panel. The centralized, "one-touch" circuit management design simplifies operation and enhances the immersive, simulator-like experience.

  5. The Ultimate Builder's Achievement: Completing the LR945 is a rite of passage. It provides a profound, hands-on education in integrating mechanical, hydraulic, and electrical systems, resulting in a peerless, self-built masterpiece.


⚠️ Critical Builder Advisory

  • Skill Level: Expert Only. This kit presupposes mastery in advanced model building, mechanical engineering principles, soldering, hydraulic system filling/bleeding, and complex RC electronics configuration. It is categorically not suitable for beginners.

  • Major Project Commitment: Builders should anticipate investing a significant amount of time (estimated 50-100+ hours) in meticulous assembly, finishing, and system calibration.

  • Required Workshop: A fully equipped workshop is necessary, including screwdrivers, hex keys, pliers, soldering station, hydraulic fluid filling kit, painting equipment, and more.

  • Support Provided: The kit includes comprehensive technical manuals. For complex challenges, builders have access to specialized online communities and our dedicated technical support team.


Embrace the zenith of scale model engineering. The LESU LR945 kit is the conclusive journey for builders who accept nothing less than creating an unparalleled, hydraulic-powered work of art from the ground up.







※If you have any questions or are not sure whether it is the correct item that you want, pls feel free to contact me before purchasing.
